845 Metal Roof Tile Roll Forming Machine Servo Motor Driving Flying Press and Cut Metal Roll Forming Machine
845 Metal Roof Tile Roll Forming Machine Servo Motor Driving Flying Press and Cut Metal Roll Forming Machine
845 Metal Roof Tile Roll Forming Machine Servo Motor Driving Flying Press and Cut Metal Roll Forming Machine 845 Metal Roof Tile Roll Forming Machine Servo Motor Driving Flying Press and Cut Metal Roll Forming Machine 845 Metal Roof Tile Roll Forming Machine Servo Motor Driving Flying Press and Cut Metal Roll Forming Machine 845 Metal Roof Tile Roll Forming Machine Servo Motor Driving Flying Press and Cut Metal Roll Forming Machine 845 Metal Roof Tile Roll Forming Machine Servo Motor Driving Flying Press and Cut Metal Roll Forming Machine

845 Metal Roof Tile Roll Forming Machine Servo Motor Driving Flying Press and Cut Metal Roll Forming Machine

Detail produk:
Tempat asal: Cina
Nama merek: NKH MACHINERY
Sertifikasi: CE/SONCAP/CSA
Nomor model: YX41-211-845
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 1 Unit
Harga: dapat dinegosiasikan
Kemasan rincian: CARGO NUDE UNTUK ROLL FORMER DENGAN CUTTER DI CONTAINER 40FT, KOTAK KAYU UNTUK KABINET KONTROL PLC
Waktu pengiriman: 90 hari kerja
Syarat-syarat pembayaran: L/C, D/A, D/P, T/T
Menyediakan kemampuan: 5 UNIT/BULAN
Hubungi sekarang

Informasi Detail
nama: Mesin Pembentuk Genteng Logam Bahan baku: Lembar kumparan pra-dicat
Berat kumparan: 10 ton atau sesuai permintaan Bahan rol: 45 # baja
Diameter poros: 75mm Sistem kontrol: sistem kontrol PLC
Bahan pisau pemotong: Cr12, perlakuan panas

Deskripsi Produk

845 Metal Roof Tile Roll Forming Machine Servo Motor Driving Flying Press and Cut Metal Roll Forming Machine 0

Metal Roof Tile Roll Forming Machine, Non-stop Pressing and Cutting



Application:

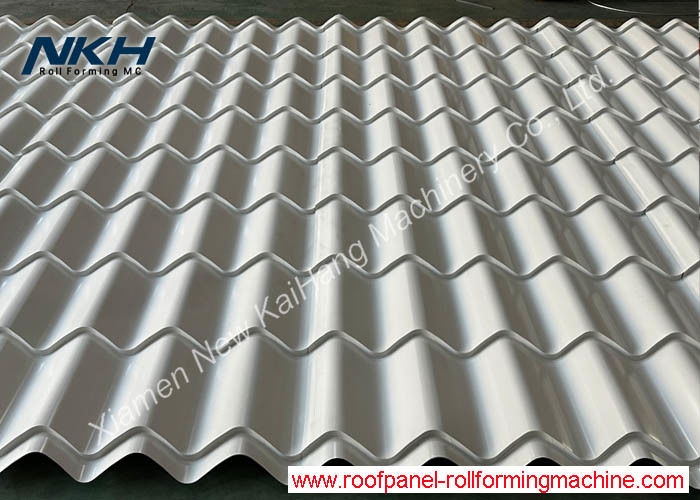

Metal step roof tiles produced by glazed tile roll forming machine from high quality pre-painted sheets most time apply as roofing on Villas or some residential buildings.

There is only one but key difference between a metal glazed roof tile and a regular metal roof panel: Steps! Generally speaking, a regular metal roof panel with steps is called a metal glazed roof tile !



Quick Detail:

  1. Thickness : 0.4mm-0.7mm
  2. Material : High quality pre-painted coil
  3. Input width : 1220mm
  4. Effective width: 845±4mm
  5. Material weight : 10tons as standard
  6. Driven way: Gear/Sprocket driving

Machine list:

  1. Hydraulic de-coiler or manual un-coiler rack
  2. Roll former
  3. Hydraulic stair drawing device, non-stop pressing
  4. Hydraulic cutting device, non-stop cutting
  5. Stacker
  6. PLC control systems

Drawings/Pictures of Complete Line:

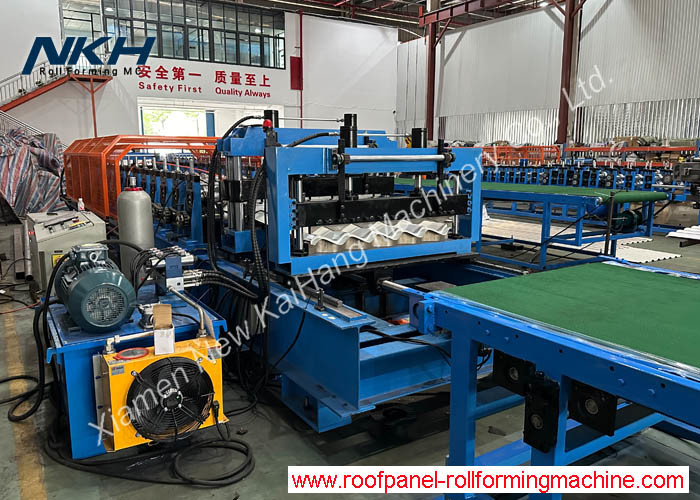

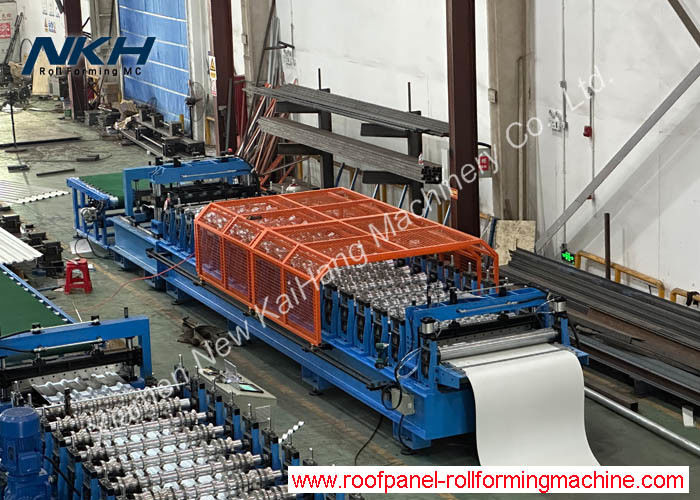

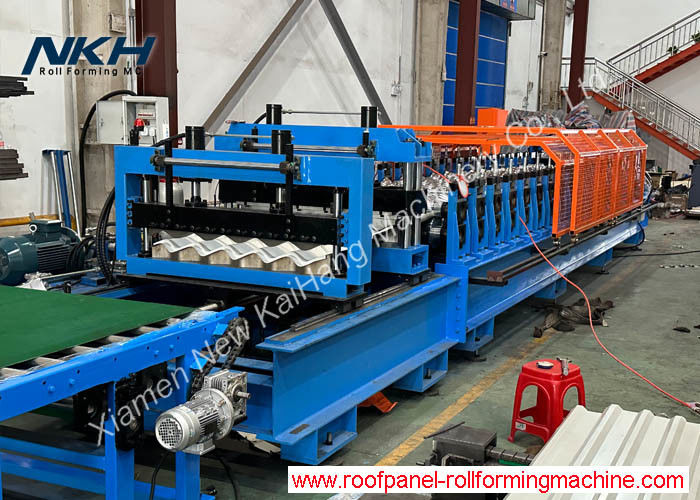

845 Metal Roof Tile Roll Forming Machine Servo Motor Driving Flying Press and Cut Metal Roll Forming Machine 1

845 Metal Roof Tile Roll Forming Machine Servo Motor Driving Flying Press and Cut Metal Roll Forming Machine 2

845 Metal Roof Tile Roll Forming Machine Servo Motor Driving Flying Press and Cut Metal Roll Forming Machine 3
